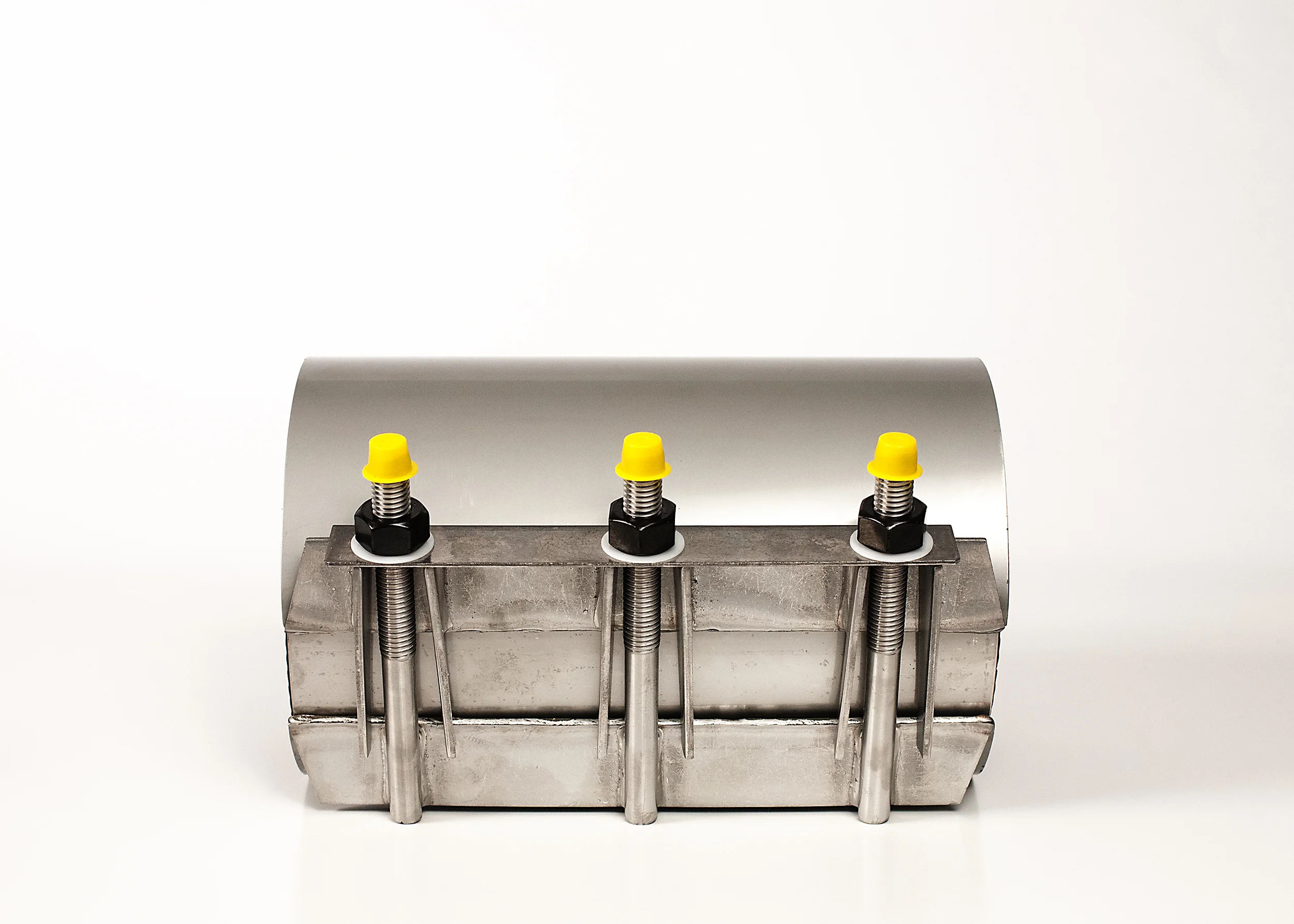

STYLE SS1-h

Full circumferential stainless steel repair clamps for HDPE pipe (also available with tapped outlet). SS1-H, SS2-H and SS3-H repair clamps use spring washers to compensate for pipe contraction during temperature and pressure changes.
Manufactured in the USA.

USE  Full circumferential repair of splits and holes.
SIZES 2” - 12”
COMPATIBILITY  HDPE pipe with a minimum wall thickness of SDR26.
WORKING PRESSURE  Up to 150 psi.

NSF61 certified upon request.




MATERIALS

SHELL 304 Stainless Steel 18 to 26 gauge depending on size.
SIDEBARS Heavy gauge 304 Stainless Steel, GTAW welded to form permanent fusion with shell.
LUGS 304 Stainless Steel, fused to sidebars by GMAW welding.
BOLTS 304 Stainless Steel, 4 inch clamps and smaller use 1/2" UNC rolled thread, 6 inch clamps and larger use 5/8" UNC rolled thread. Bolts are GMAW welded to sidebar.
NUTS Heavy hex, 304 Stainless Steel, 4 inch clamps and smaller uses 1/2" UNC threads, 6 inch clamps and larger uses 5/8" UNC threads. Nuts coated to prevent galling.
SPRING WASHERS 1/2” or 5/8" 304 Stainless Steel spring washers manufactured from a special grade of Stainless Steel used in the making of springs.
PLASTIC WASHERS 1/2" or 5/8" plastic washer prevents galling between spring washer and lifter bar.
ARMORS Heavy gauge 304 Stainless Steel, bonded to gasket to bridge gap at lug area.
LIFTER BARS 304 Stainless Steel, lip curved to hold position while tightening. Heavy gauge serves as bearing surface for nuts.
GASKETS Virgin SBR rubber compounded for water and sewer service in accordance with ASTM D 2000 MAA 610. Other compounds available for petroleum or high temperature service, or other special applications.
